Pluto 3A
IP65 LED Step Lights
3W,AC12V,70×34.5 mm ( Diameter x Height)
$100.00 – $184.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Pluto 3A |
| Item No | PL03A |
| Power | 3 watts +-10% |
| LED type | 1 PC CREE LED |
| Luminous Flux | 110 lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |

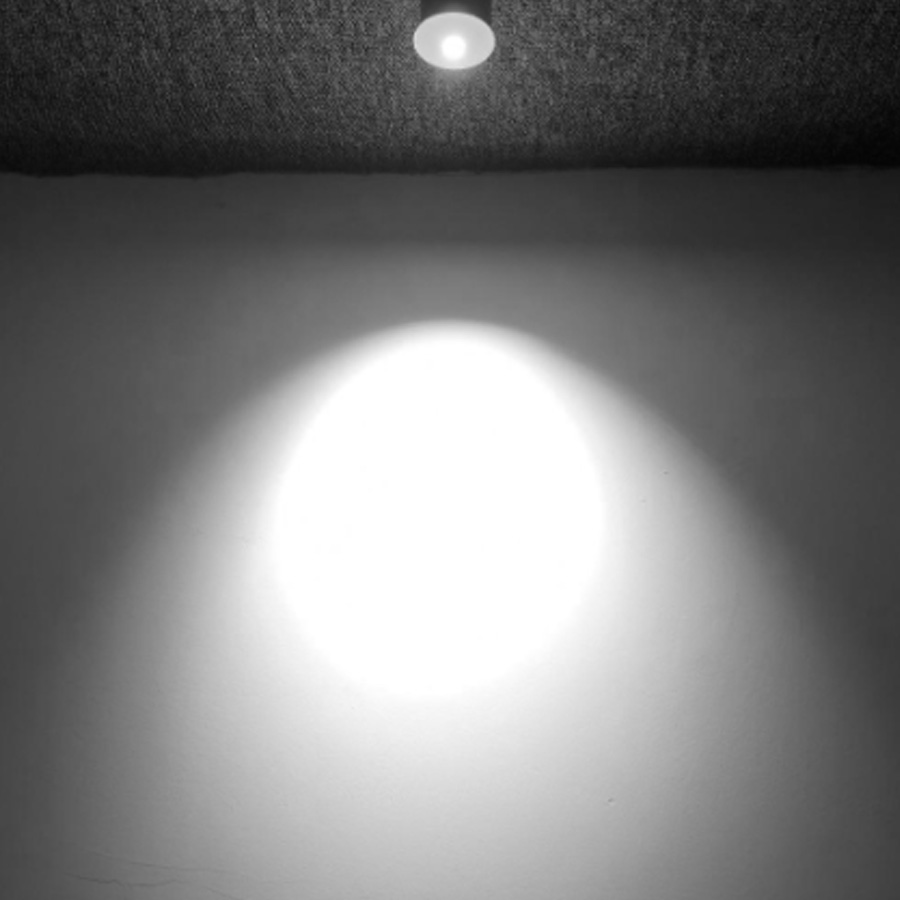

| Beam angle | Asymmetric downward 40°x30° |

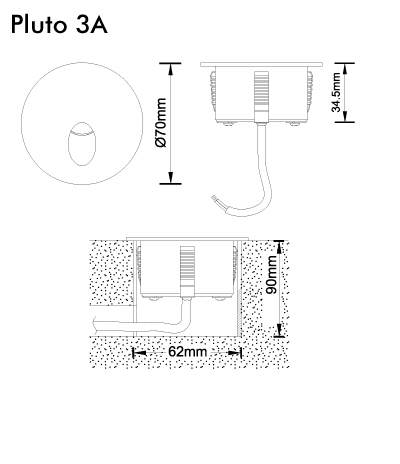

| Dimension | 70×34.5 mm ( Diameter x Height) |
| Cut out | / |
| Net weight | 0.25 kgs |
| Warranty | 5 years warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 0.3M 2*20# cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP65 |
| IK rating | IK06 |
| Housing | Aluminium |

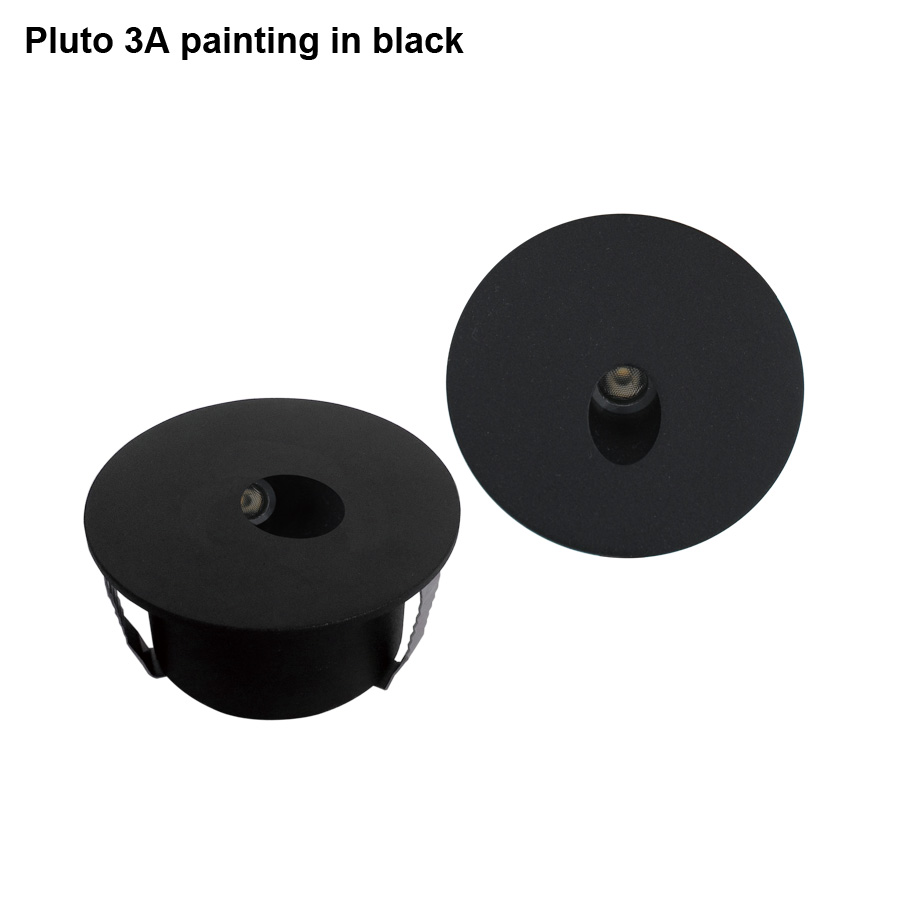

| Protectiong finishing | Painted in white or black, plating in polished chrome or Satin Nickel |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Mounting box | Mounting box for recessed installation |
| Packaging | |
| Inner box size | 85*85*100 mm |
| Carton size | 27*27*24.5 cm (18PCS / carton) |
Gallery
Video
Versions
Uranus 9
- 1x9W
- AC12V
- 2700K, 3000K, 4000K, 6000K
