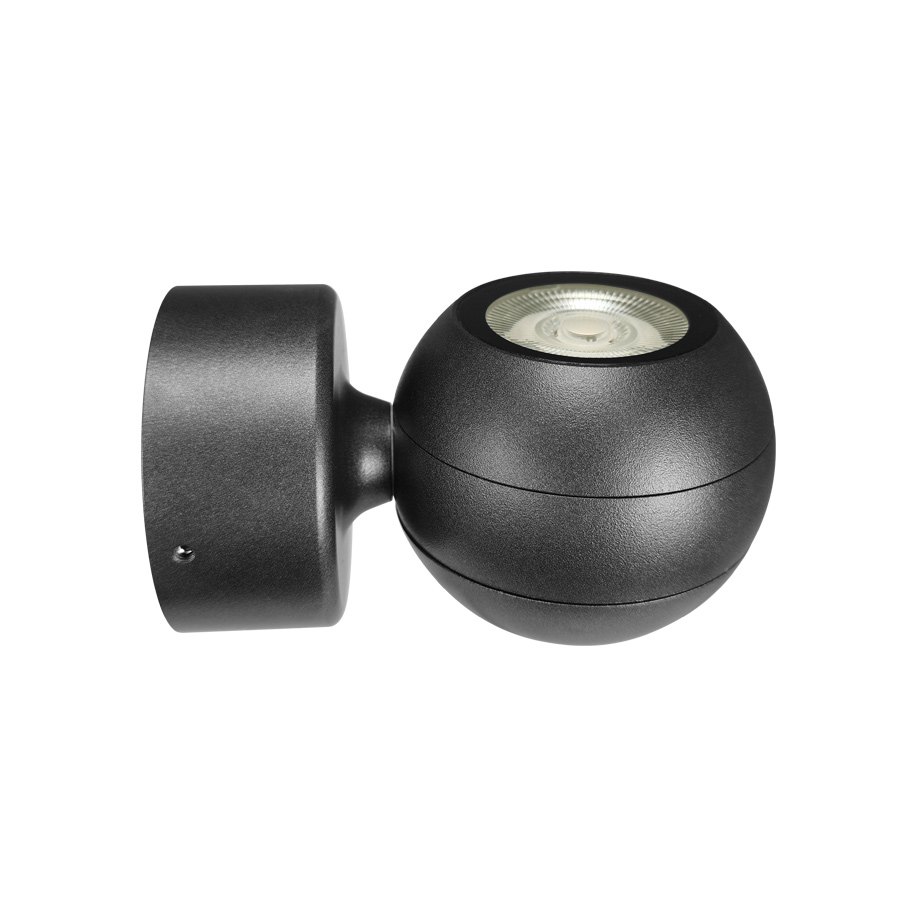

Moon 10WD
IP65 LED wall mounting spot light one side
2x5W,AC12V,Φ80 x 120 (mm) Diameter x Length
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| General Data | |
| Name | Moon 10WD |
| Item No | MN10WD |
| Power | 10 watts +-10% |
| LED type | 2 PCS 5W CREE COB LED |
| Luminous Flux | 800 lm +-10% |
| CCT | 2700K,3000K,4000K,5700K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 10°, 15°, 24°,36°, 60° |

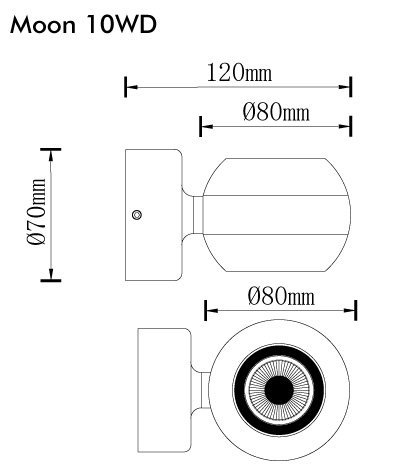

| Dimension | Φ80 x 120 (mm) Diameter x Length |
| Cut out | / |
| Net weight | 0.6 kgs |
| Warranty | 3 years as standard, 5 years as options |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 0.3M 2* 20# PVC cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP65 |
| IK rating | IK04 |
| Housing | Aluminium |
| Protection finishing | Electrophoresis+powder coated painted in dark grey as standard, black,coffee red,white ,antiqua brass color as options |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Round base | Aluminium round base for wall mounting |
| Packaging | |
| Inner box size | 130*90*90 mm |
| Carton size | 47.5*28*20.5 cm (20 PCS / carton) |
