Jupiter 5B
IP65 LED Step Lights
5W,AC12V,182x81x43 mm (LengthxWidexHeight)
$100.00 – $184.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Jupiter 5B |
| Item No | JU05B |
| Power | 5 watts +-10% |
| LED type | 30 PCS OSRAM 2835 SMD LED |
| Luminous Flux | 380 lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | Asymmetricdownward 45°x120° |

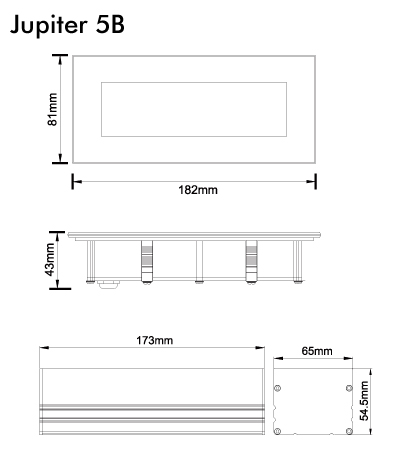

| Dimension | 182x81x43 mm (LengthxWidexHeight) |
| Cut out | / |
| Net weight | 0.45kgs |
| Warranty | 5 years warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 0.3M 2*20# cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP65 |
| IK rating | IK06 |
| Housing | Aluminium |
| Protectiong finishing | Electrophoresis+powder coated painted in dark grey |
| Trim | Clear glass |
| Loading capacity | / KGS |
| Accessories | |
| Mounting box | Mounting box for recessed installation |
| Packaging | |
| Inner box size | 208*105*70 mm |
| Carton size | 42*22*46 cm (24 PCS / carton) |
Gallery
Video
Versions
Pluto 2S
- 2W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Pluto 3A
- 3W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Pluto 3AS
- 3W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Pluto 3BS
- 3W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Jupiter 3B
- 3W
- AC12V
- 2700K, 3000K, 4000K, 6000K
