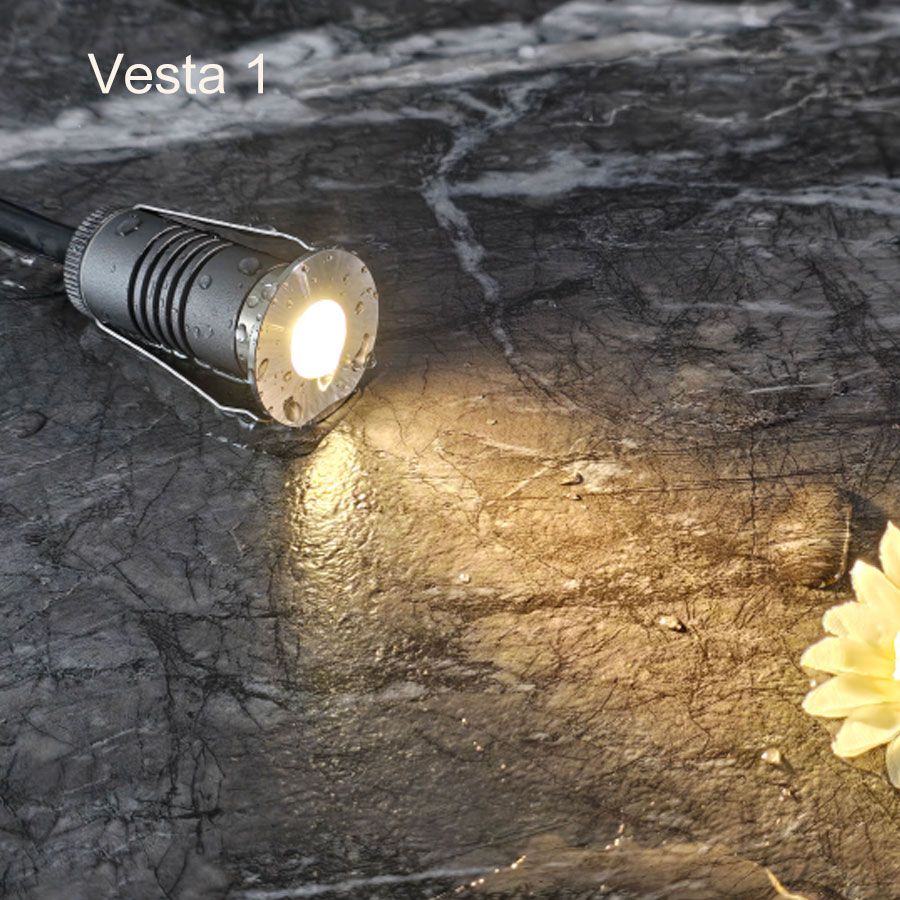

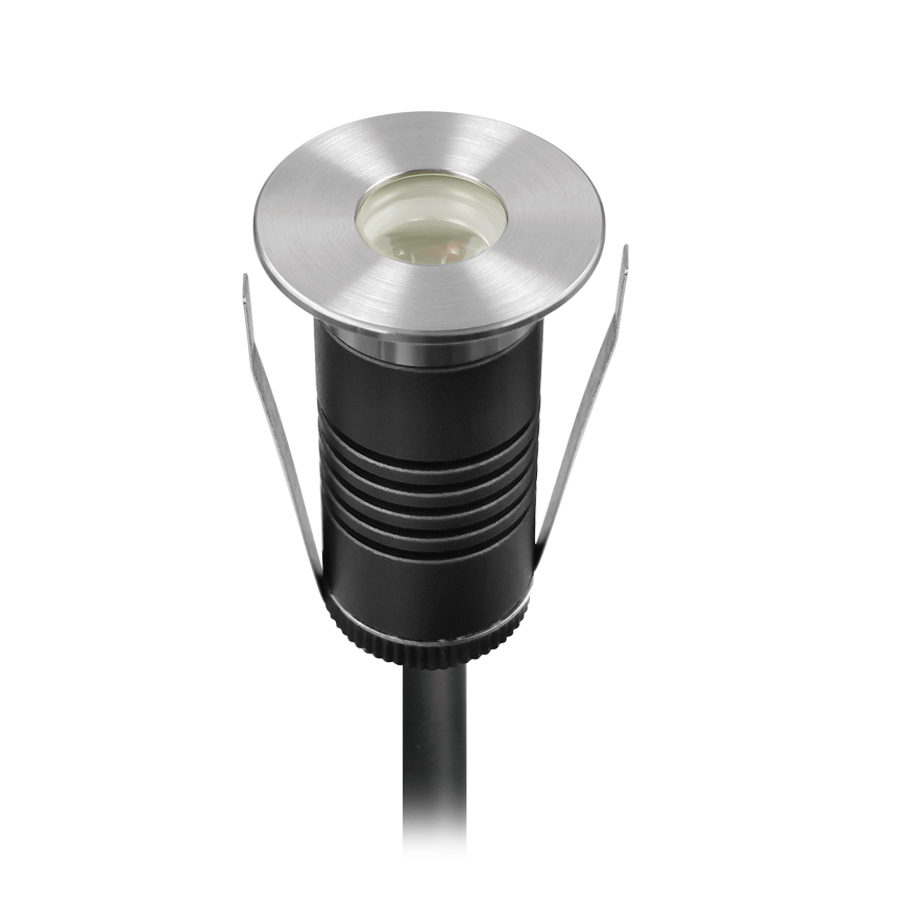

Vesta 1
IP67 LED inground light
1.4W,DC24V,Φ28×46 mm (Diameter x Height)
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| General Data | |
| Name | Vesta 1 |
| Item No | VT1 |
| Power | 1.4 watts +-10% |
| LED type | 1 PC 1 W OSARM LED |
| Luminous Flux | 80 lm+-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 15°, 25°, 30°,45°, 60°, 120° |

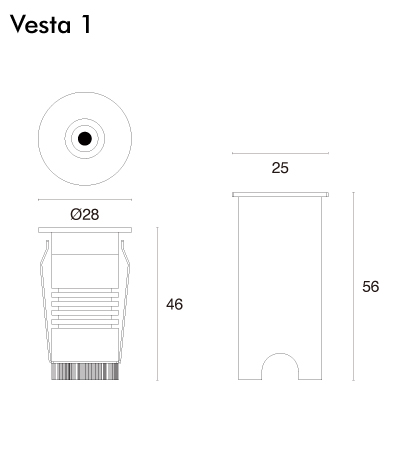

| Dimension | Φ28×46 mm (Diameter x Height) |
| Cut out | / |
| Net weight | 0.072 kgs |
| Warranty | 3 years as standard, 5 years as options |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 1M 2*0.824 mm2 rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP67 |
| IK rating | IK06 |
| Housing | Aluminium |
| Protection finishing | Double painted in dark grey |
| Trim | Mirror polishing SS316L |
| Loading capacity | 750 kgs max. static load |
| Accessories | |
| Mounting sleeve | Aluminium monting sleeve in dark grey |
| Honeycomb | Anti-glare honeycomb as options |
| Packaging | |
| Inner box size | 70*55*55 mm |
| Carton size | 46*37*24 cm (160 PCS / carton) |
