Uranus 9
IP65 One Side LED Step Lights
9W,AC12V,85*98*65 (mm) (Length x Width x Diameter)
$100.00 – $184.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Uranus 9 |
| Item No | UR09 |
| Power | 9 watts +-10% |
| LED type | 1 PC CREE COB LED |
| Luminous Flux | 750 lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 10°, 23°, 36° |

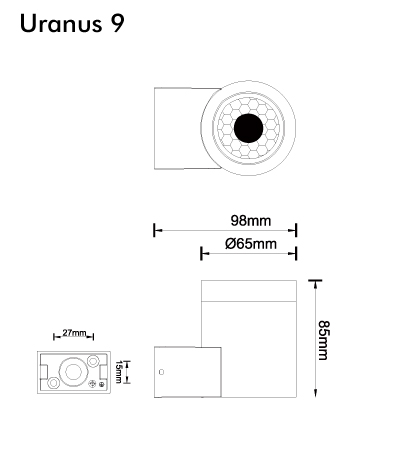

| Dimension | 85*98*Ø65 (mm) (Length x Width x Diameter) |
| Cut out | / |
| Net weight | 0.56 kgs |
| Warranty | 5 years warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 0.3M 2*20# cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP65 |
| IK rating | IK06 |
| Housing | Aluminium |
| Protectiong finishing | Electrophoresis +powder coated painting Aluminum in dark grey as standard,and black ,white or coffee red and Antique brass color as options. |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Mounting part | Mounting part with screws or surface installation |
| Packaging | |
| Inner box size | 130*105*70 mm |
| Carton size | 55*28*16.5 cm (20PCS/ carton) |
Gallery
Video
Versions
Moon 10W
- 1X10W
- AC12V
- 2700K, 3000K, 4000K, 5700K
Moon 10WD
- 1X10W
- AC12V
- 2700K, 3000K, 4000K, 5700K
Moon 6W
- 1x6W
- AC12V
- 2700K, 3000K, 4000K, 5700K
Moon 6WD
- 2X3W
- AC12V
- 2700K, 3000K, 4000K, 5700K
Uranus 3
- 1X3.5W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Uranus 7
- 2X3.5W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Uranus 18
- 2X9W
- AC12V
- 2700K, 3000K, 4000K, 6000K
