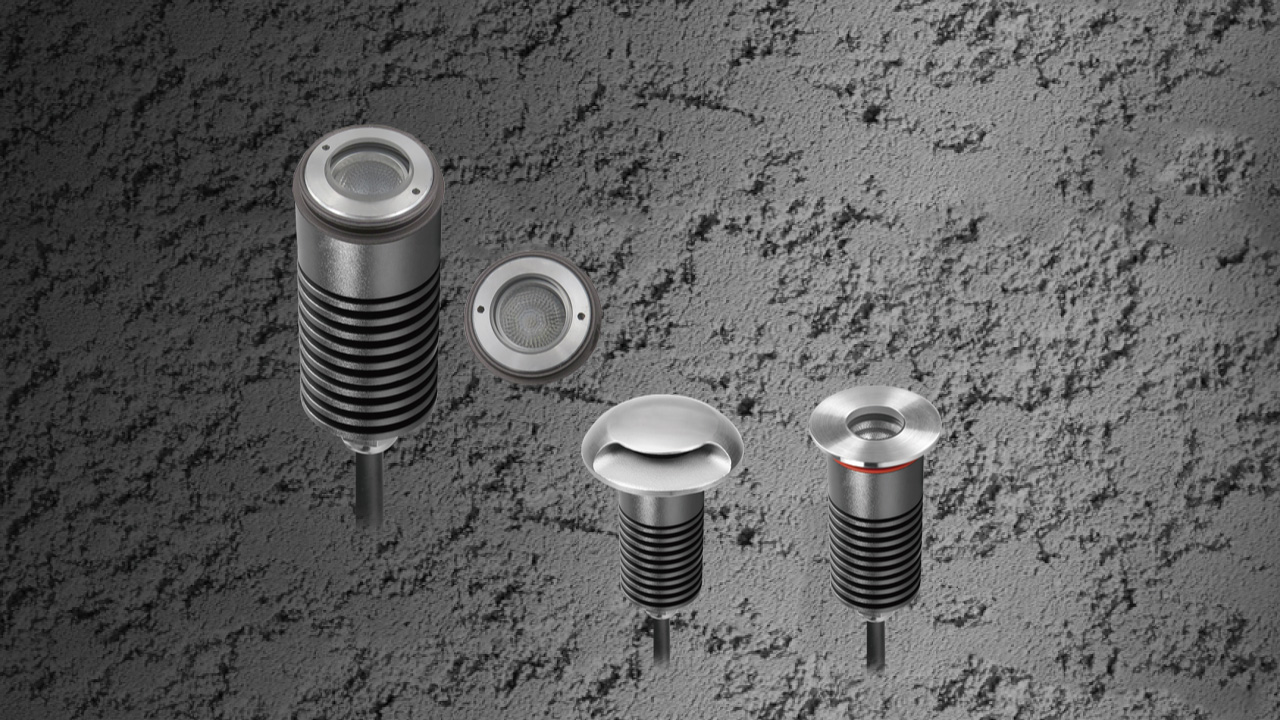

Saturn
IP67 recessed mounting LED inground light
3W,AC12V,lamp Φ37x75mm (Diameter x Height) for lamp body only without covers
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| General Data | |
| Name | Saturn |
| Item No | SA03 |
| Power | 3 watts +-10% |
| LED type | 1 PC 3W CREE XPE LED |
| Luminous Flux | 130 lm+-10% without covers |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 6°, 11°,17°,23°,28°,43°,58° |

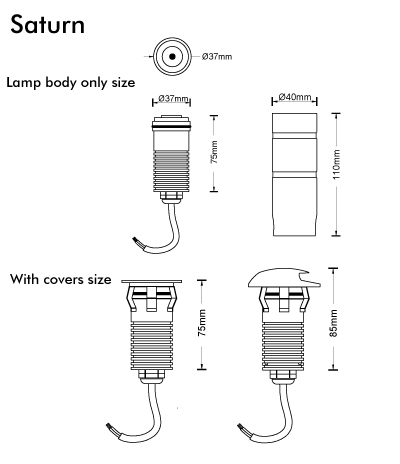

| Dimension | Φ37×75 mm (Diameter x Height) |
| Cut out | Φ40 mm |
| Net weight | 0.35 kgs |
| Warranty | 5 Years Warranty / Cover 15 Years Warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | Rubber cable 1M 2×0.824mm² |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP67 |
| IK rating | IK10 |
| Housing | Aluminium |
| Protection finishing | Electrophoresis +painted in silver grey |

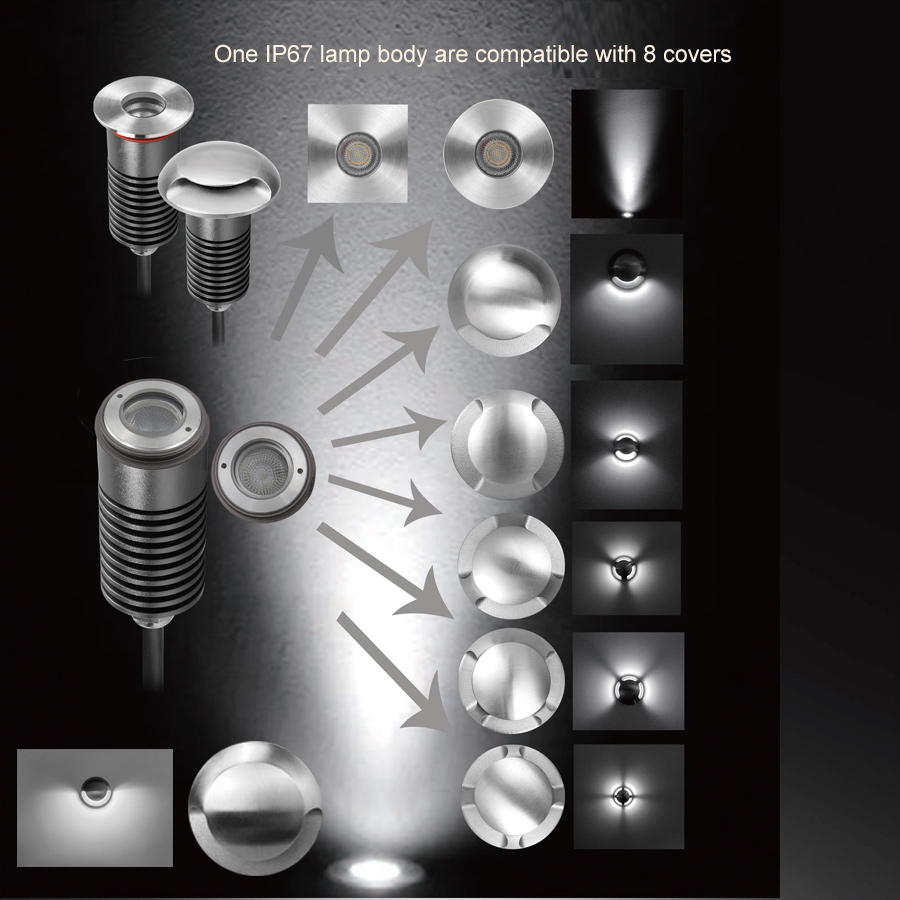

| Trim | 8 kinds of covers as options |
| Loading capacity | 820 kgs max. static load |
| Accessories | |
| Sleeve | With monting sleeve as recessed inground mounting |
| Mounting | With clips as options for wall or deck recessed mounting |
| Packaging | |
| Inner box size | 130*85*65 mm |
| Carton size | 45*28.5*22 cm (30PCS / carton) |
Gallery
Video
Versions

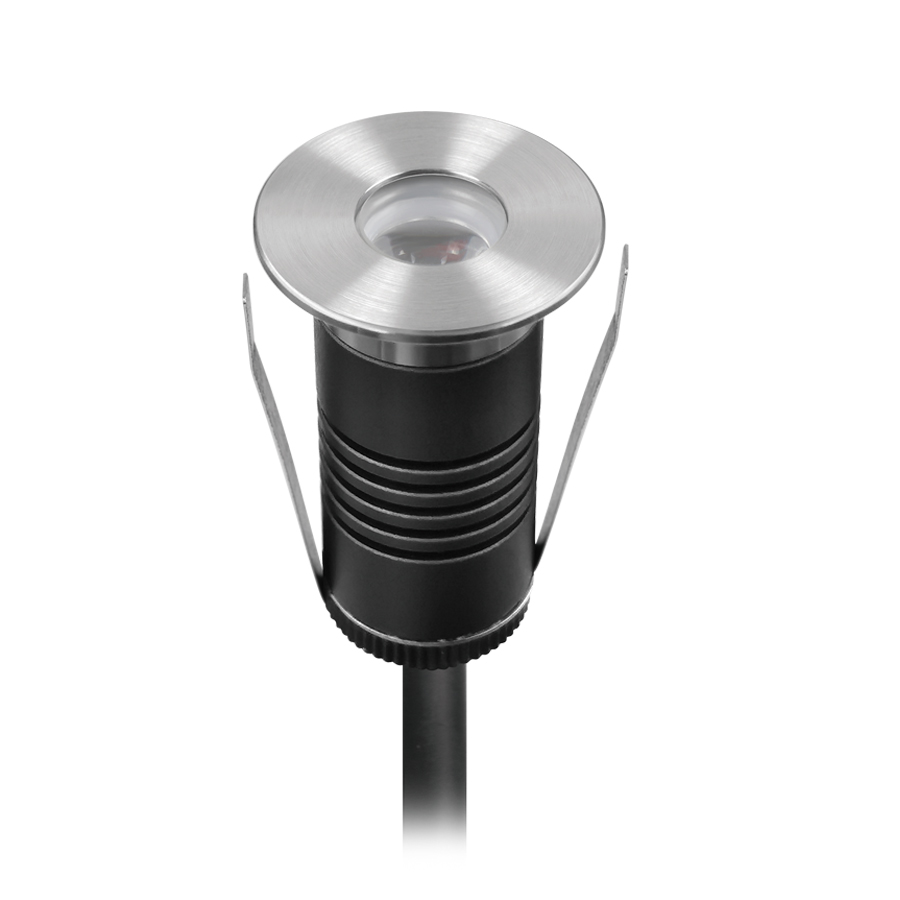

Vesta 1
- 1.4W
- DC24V
- 2700K, 3000K, 4000K, 6000K

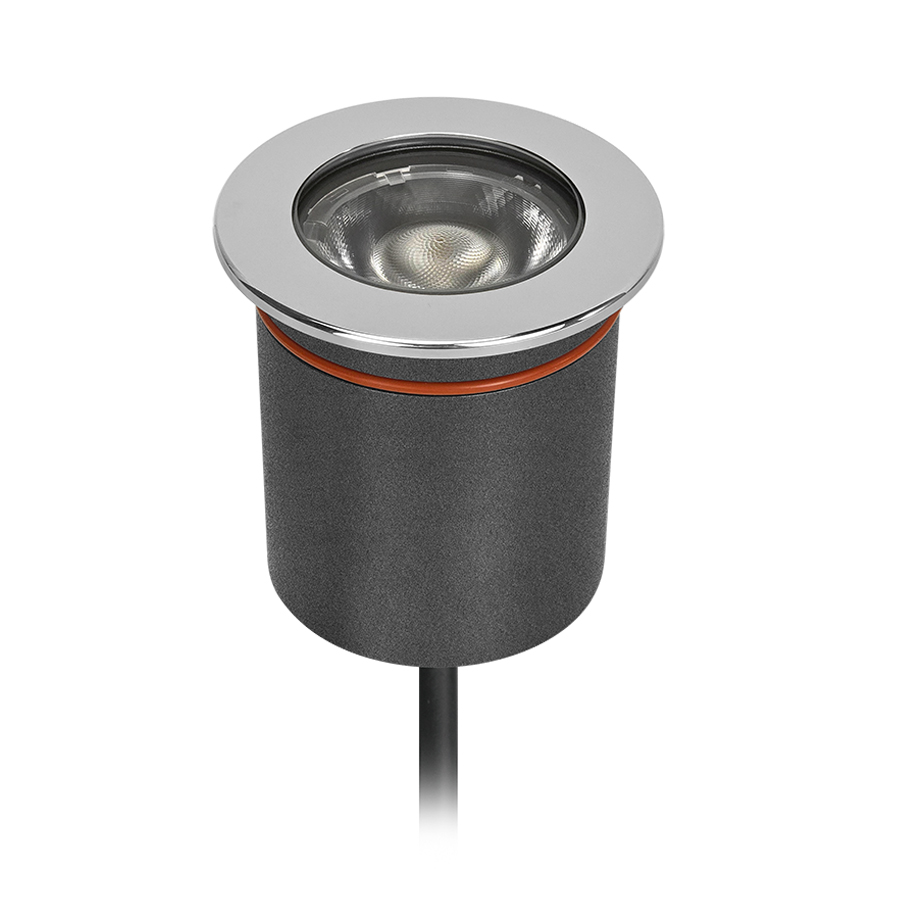

Vesta 12
- 12W
- AC12V
- 2700K, 3000K, 4000K, 5700K

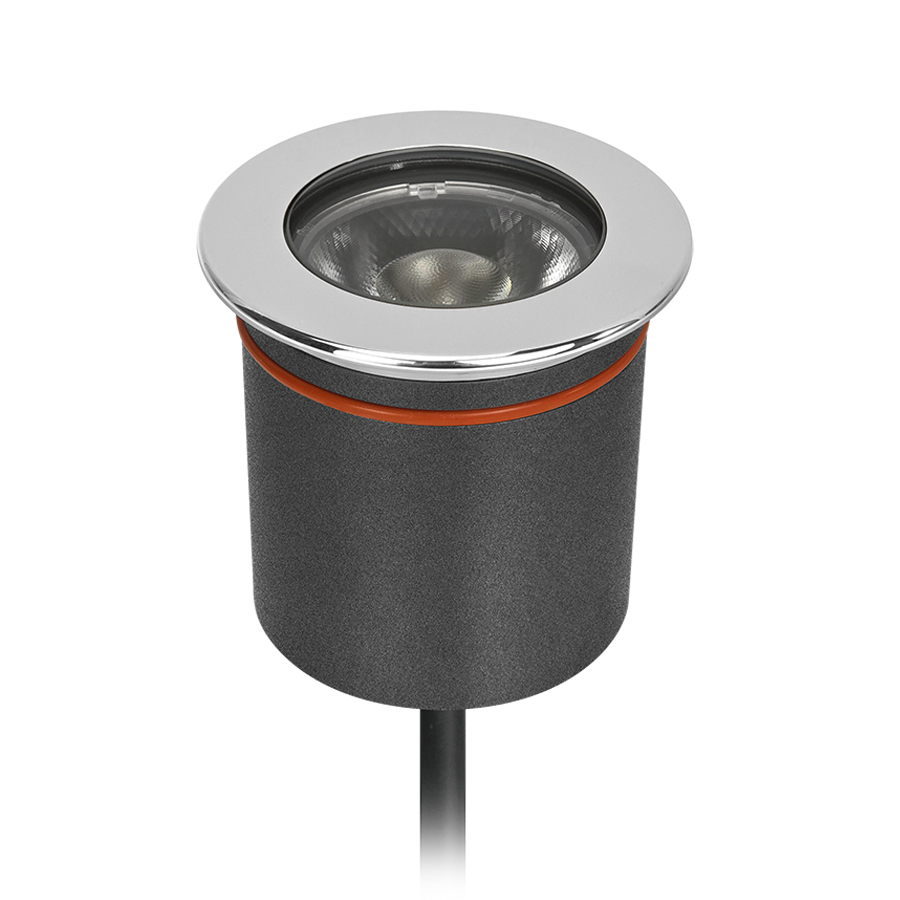

Vesta 15
- 15W
- AC12V
- 2700K, 3000K, 4000K, 5700K

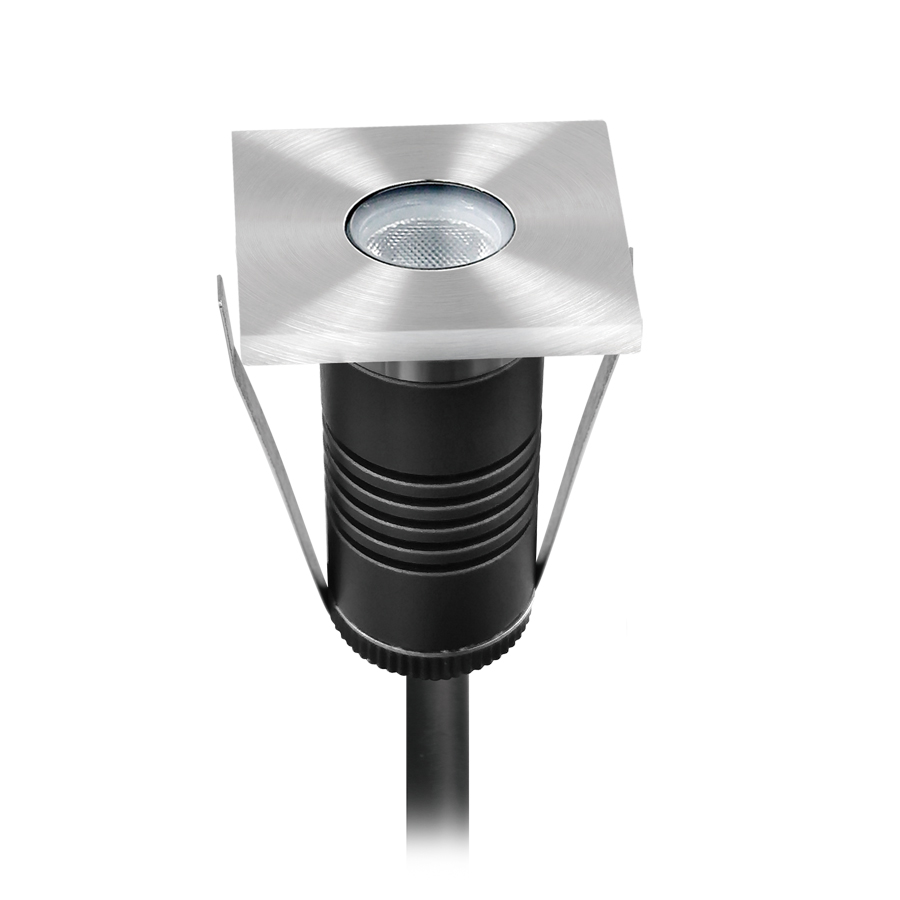

Vesta 1S
- 1.4W
- DC24V
- 2700K, 3000K, 4000K, 6000K

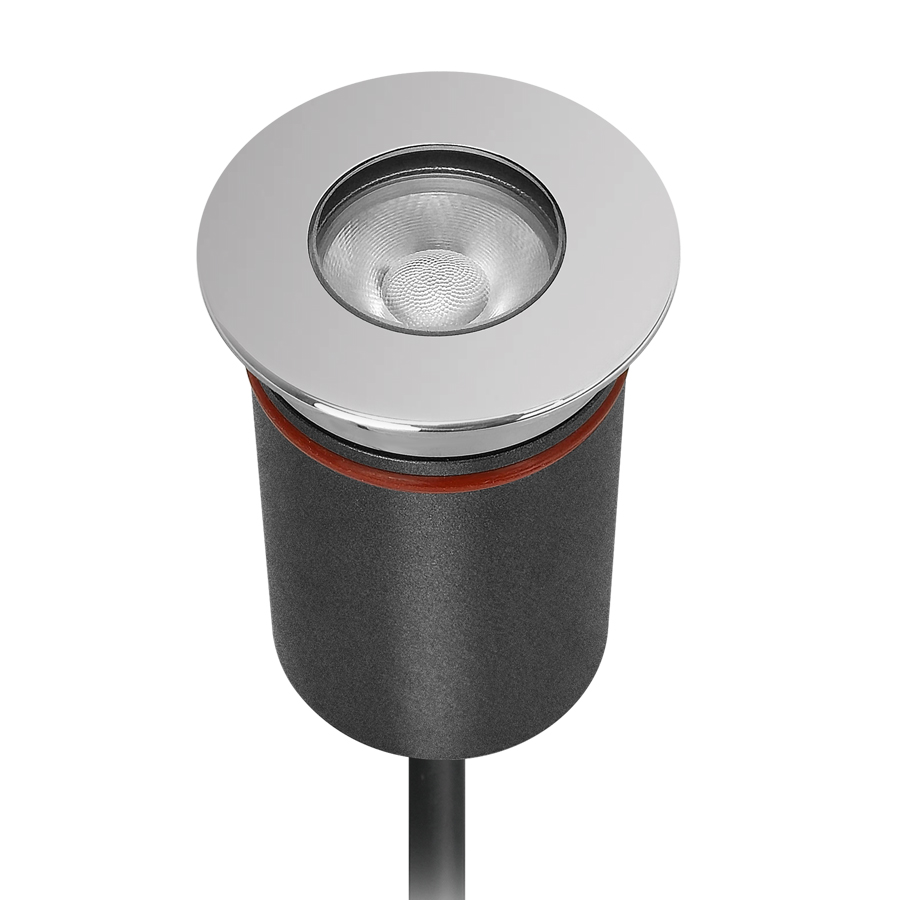

Vesta 3
- 3W
- AC12V
- 2700K, 3000K, 4000K, 5700K

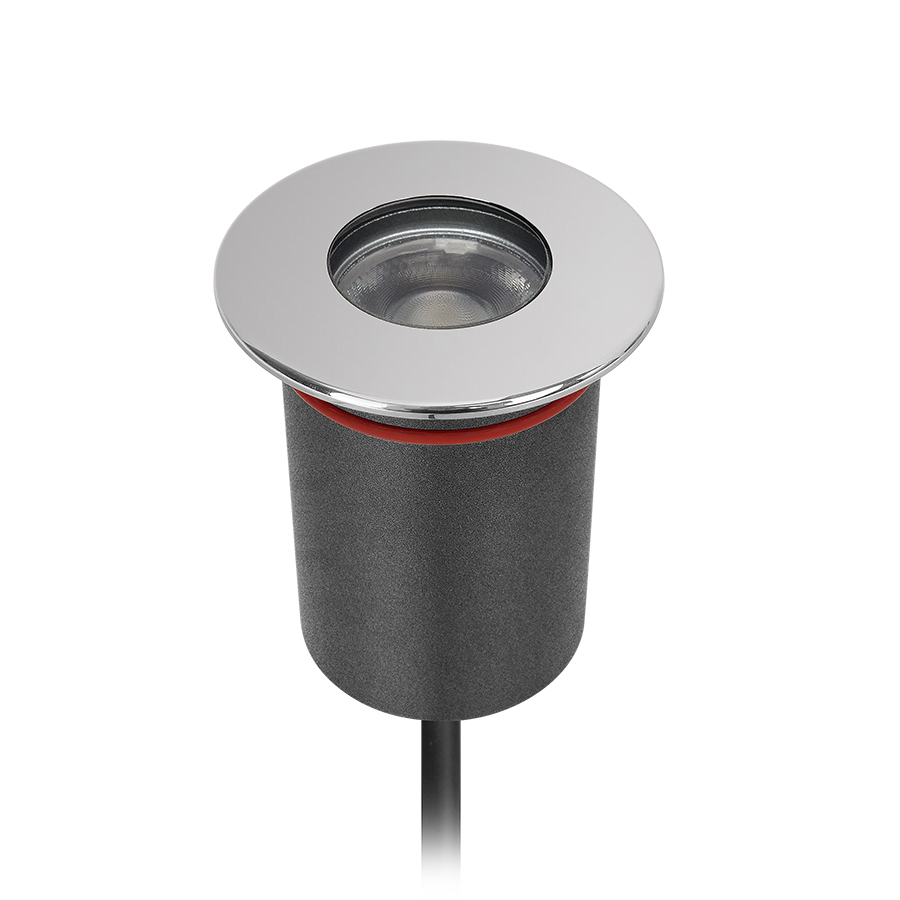

Vesta 6
- 6W
- AC12V
- 2700K, 3000K, 4000K, 5700K
