Pisces 2asym 600
IP65 LED Bollard Lights
12W,AC12V,Φ60×300 mm (Diameter x Height),double sides of beams.
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Pisces 2asym 600 |
| Item No | PS122600 |
| Power | 12 watts +-10% |
| LED type | 1 PC 12W CREE COB LED |
| Luminous Flux | 350lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | Double beam Asymmetrical 60°x60° |

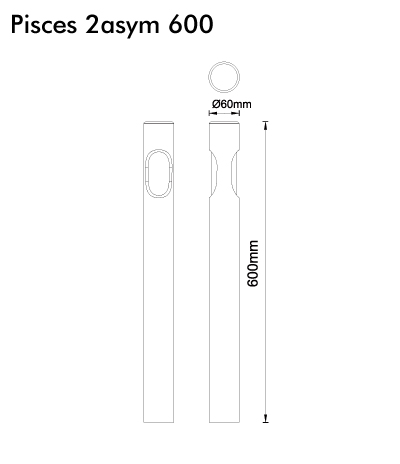

| Dimension | 60*600 mm (Diameter x Height ) |
| Cut out | / |
| Net weight | 2.2 kgs |
| Warranty | 5 years warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 1M 2*0.824 mm2 rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP65 |
| IK rating | IK06 |
| Housing | Aluminium |
| Protectiong finishing | Electrophoresis+powder coated painted in dark grey as standard, black,coffee red,white ,antiqua brass color as options |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Round base | Mounting parts with screws for ground mounting directly |
| Anchor bolts | Anchor bolts and screws for lawn installlation by filling concrete |
| Packaging | |
| Inner box size | 65*65*630mm |
| Carton size | 15*15*65 cm (4PCS / carton) |
Gallery
Video
Versions
LILA09 (415)
- 9W
- AC12V
- 2700K, 3000K, 4000K, 6000K
LILA09 (605)
- 9W
- AC12V
- 2700K, 3000K, 4000K, 6000K
LILA09 (996)
- 9W
- AC12V
- 2700K, 3000K, 4000K, 6000K
LILAS02 (415)
- 2W
- Solar powered
- 2700K, 3000K, 4000K, 6000K
LILAS02 (605)
- 2W
- Solar powered
- 2700K, 3000K, 4000K, 6000K
LILAS02 (996)
- 2W
- Solar powered
- 2700K, 3000K, 4000K, 6000K
LIX12 (600+100)
- 12W
- AC12V
- 2700K, 3000K, 4000K, 6000K
LIX12 (410+100)
- 12W
- AC12V
- 2700K, 3000K, 4000K, 6000K
LIX12 (990+100)
- 12W
- AC12V
- 2700K, 3000K, 4000K, 6000K
