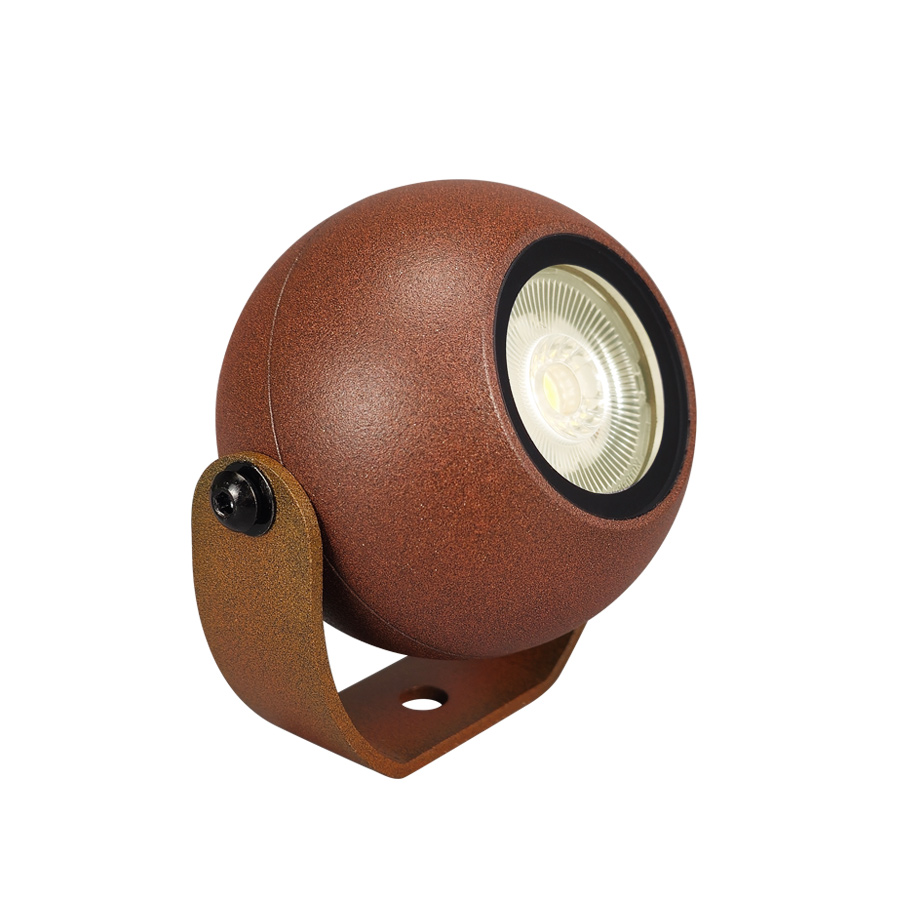

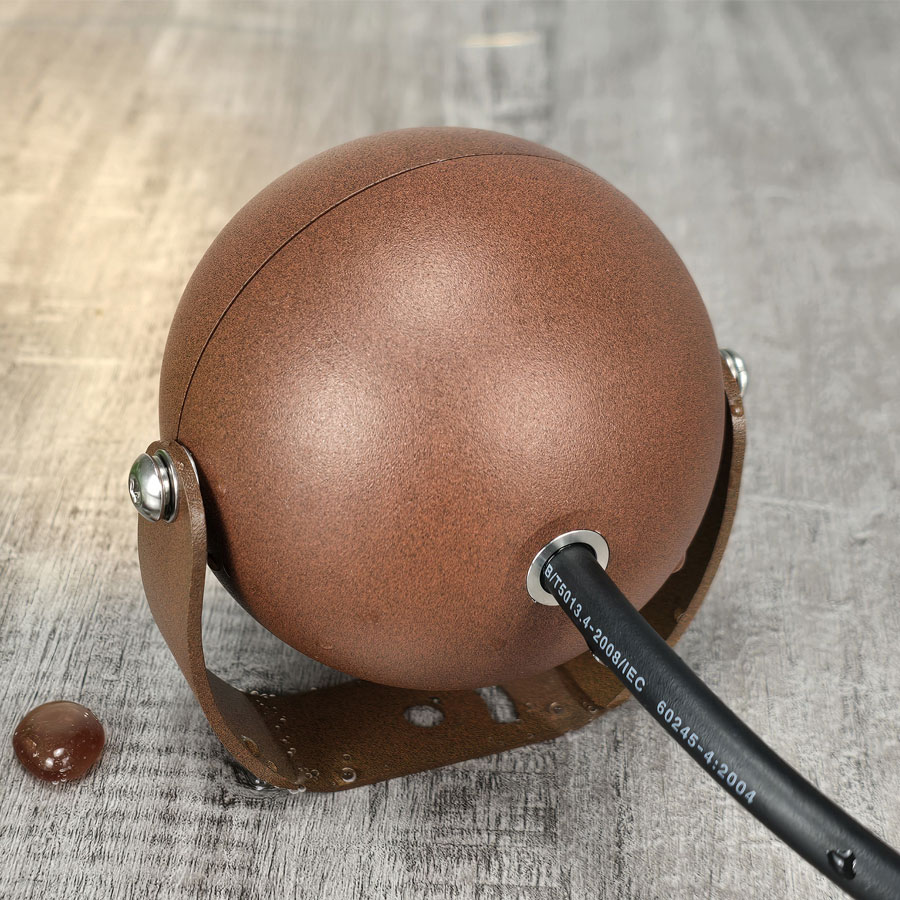

Moon 3B
IP67 LED garden spot light
3W,AC12V,Φ60 x 52.5 x 70 (mm) Diameter x Length x Height
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| General Data | |
| Name | Moon 3B |
| Item No | MN03 Bracket |
| Power | 3 watts +-10% |
| LED type | 1 PC 3W CREE COB LED |
| Luminous Flux | 240 lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 10°, 15°, 24°,36°, 60° |
| Dimension | Φ60 x 52.5 x 70 (mm) Diameter x Length x Height |
| Cut out | / |
| Net weight | 0.3 kgs |
| Warranty | 3 years as standard, 5 years as options |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 1M 2*0.824 mm2 rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP67 |
| IK rating | IK04 |
| Housing | Aluminium |
| Protection finishing | Electrophoresis+powder coated painted in dark grey as standard, black,coffee red,white ,antiqua brass color as options |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Spike | With spike as spike spot lights (optional) |
| Round base | Aluminium round base for wall mounting (optional) |
| Pole | with 300-750mm pole for one lamp as options |
| Pole | with 300-750mm pole for two lamps as options |
| Packaging | |
| Inner box size | 80*80*80 mm |
| Carton size | 34*34*18.5 cm (32 PCS / carton) |
Gallery
Video
Versions
Mars 3
- 3W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Mars 6
- 6W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Mars 15
- 15W
- AC12V
- 2700K, 3000K, 4000K, 6000K
