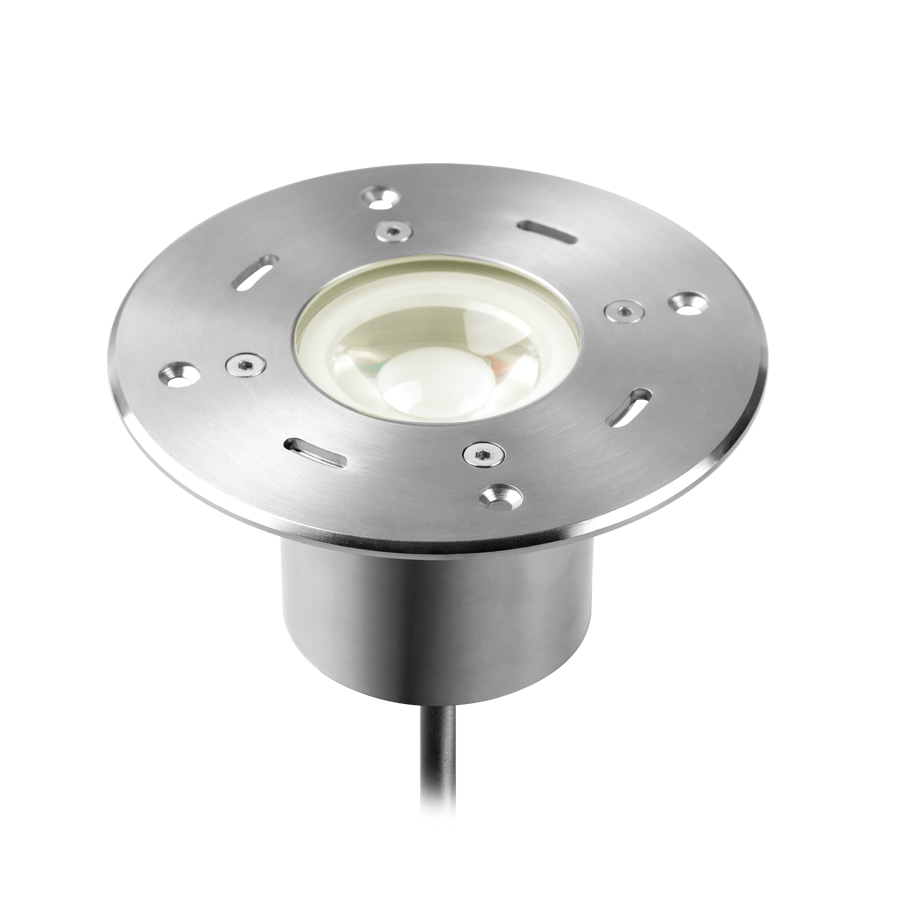

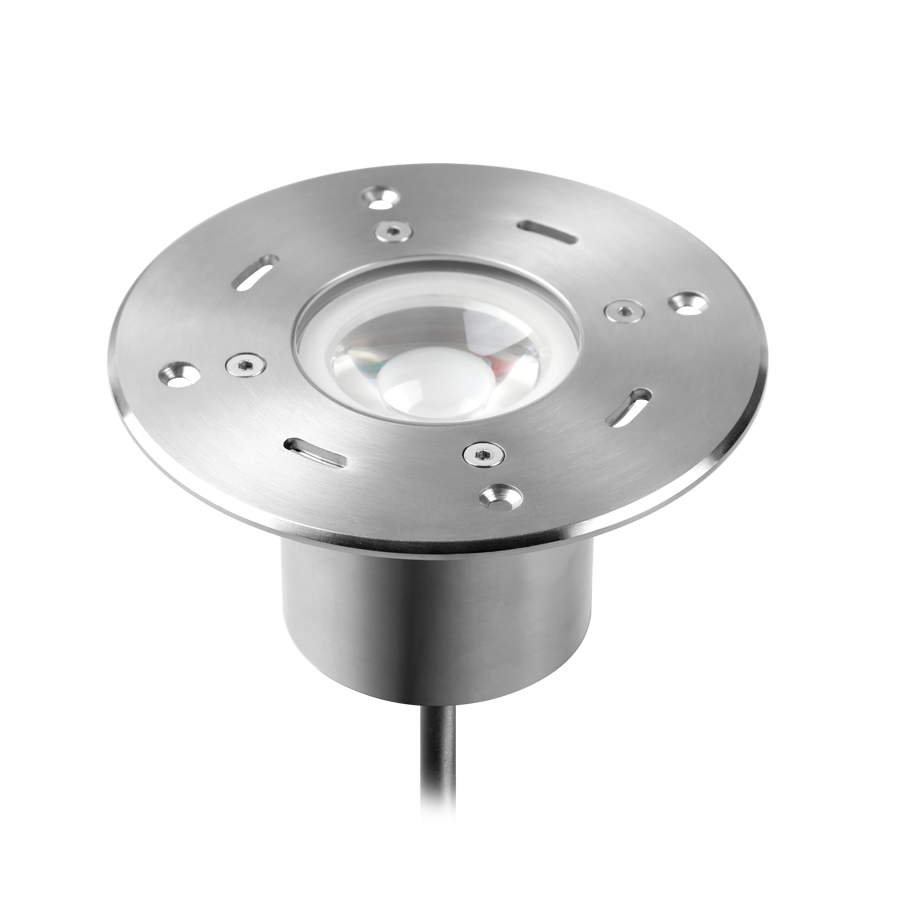

Mercury 12
IP68 LED underwater light
12W,AC12V,Φ128 x 68 mm (Diameter x Height)
$100.00 – $141.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Mercury 12 |
| Item No | ME12 |
| Power | 12 watts +-10% |
| LED type | 3PCS CREE XPG3-R5 LED |
| Luminous Flux | 900 lm+-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 10°, 23°, 36° |

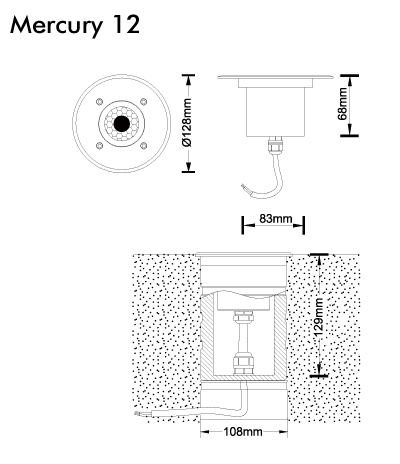

| Dimension | Φ128 x 68 mm (Diameter x Height) |
| Cut out | 108 mm |
| Net weight | 2.35 kgs |
| Warranty | 5 Years Warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V as standard (DC12V or DC24V optional) |
| Insulation class | Class III |
| Cable | 1PC 2M 2*0.824 mm2 rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP68 |
| IK rating | IK09 |
| Housing | Stainless Steel 316L |
| Protection finishing | Passivating |
| Trim | Stainless Steel 316L |
| Loading capacity | / |
| Accessories | |

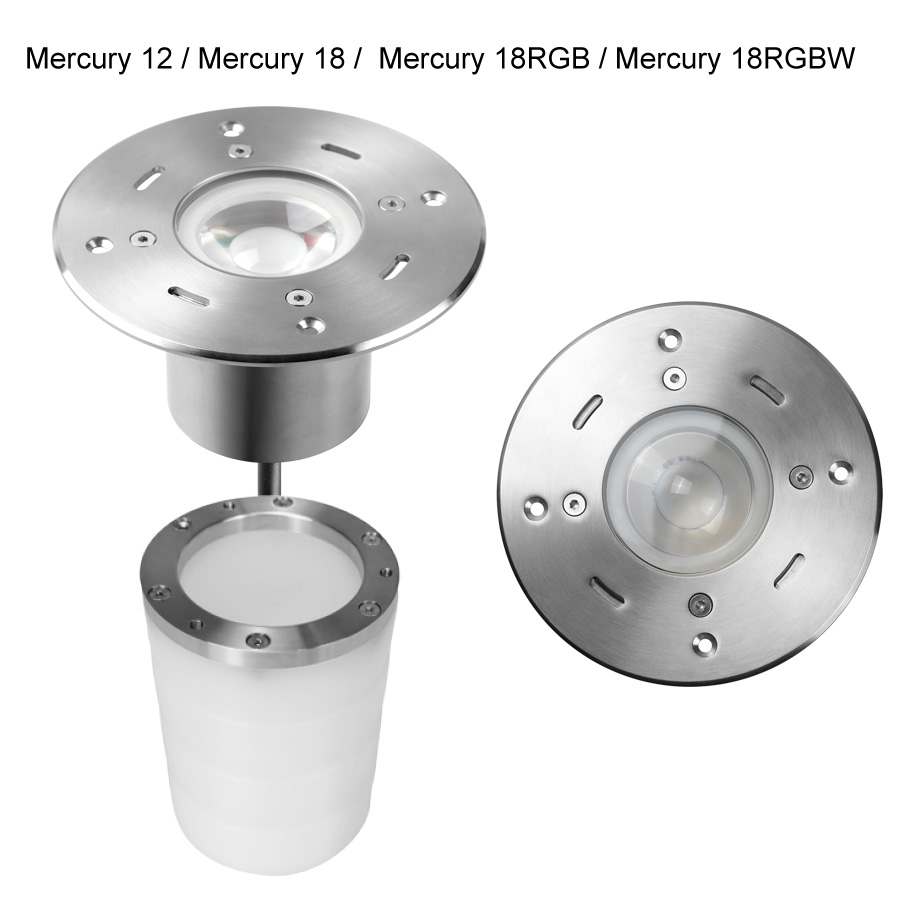

| Mounting sleeve | Nylon mounting box |
| Packaging | |
| Inner box size | 140*140*175 mm |
| Carton size | 34*31*40 cm (8PCS / carton) |

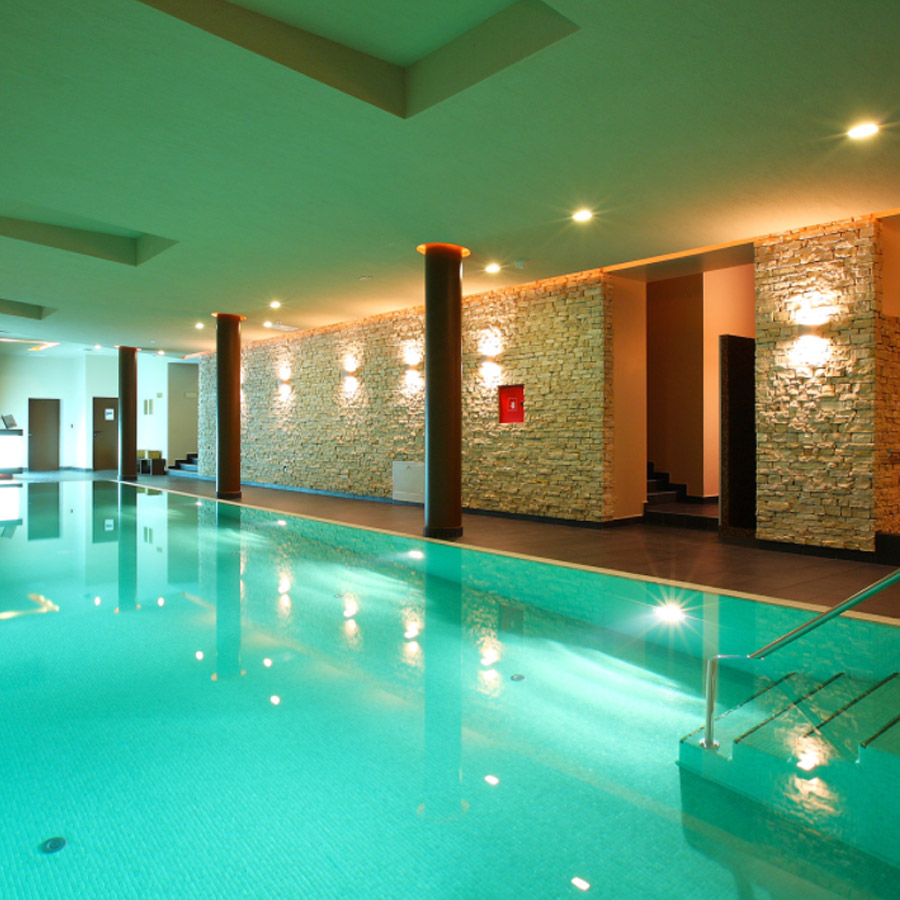

Gallery
Video
Versions
Moon 8U
- 8W
- AC12V
- 2700K, 3000K, 4000K, 5700K

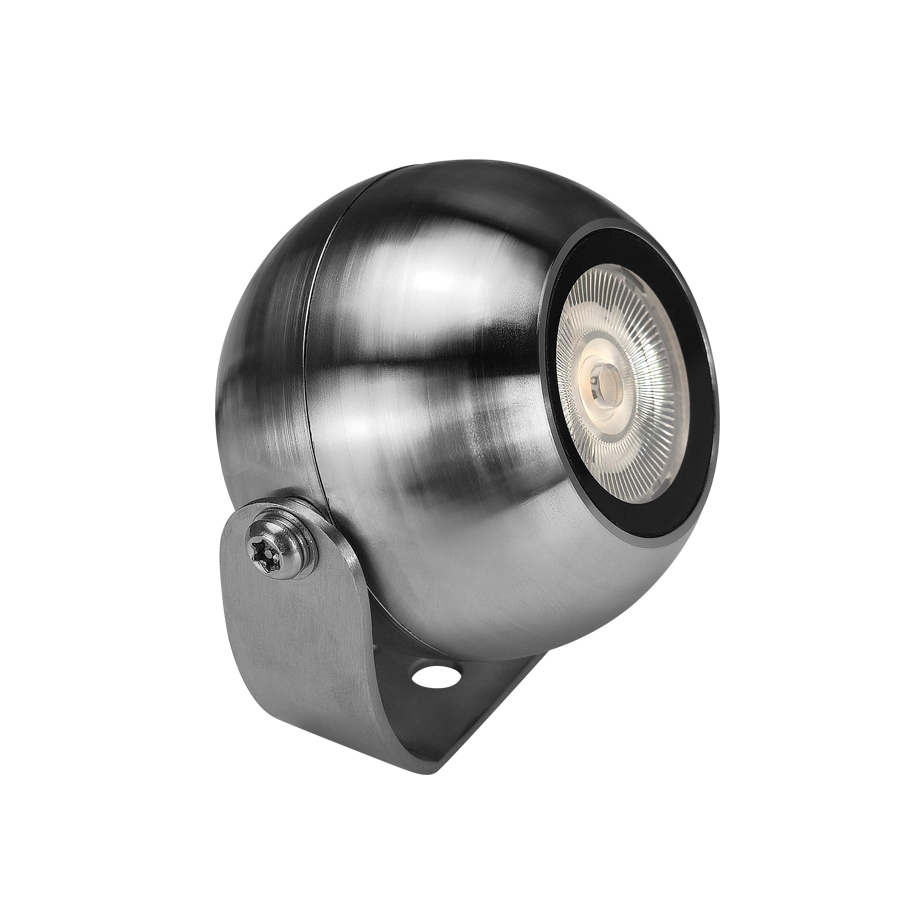

Moon 3U
- 3W
- AC12V
- 2700K, 3000K, 4000K, 5700K
