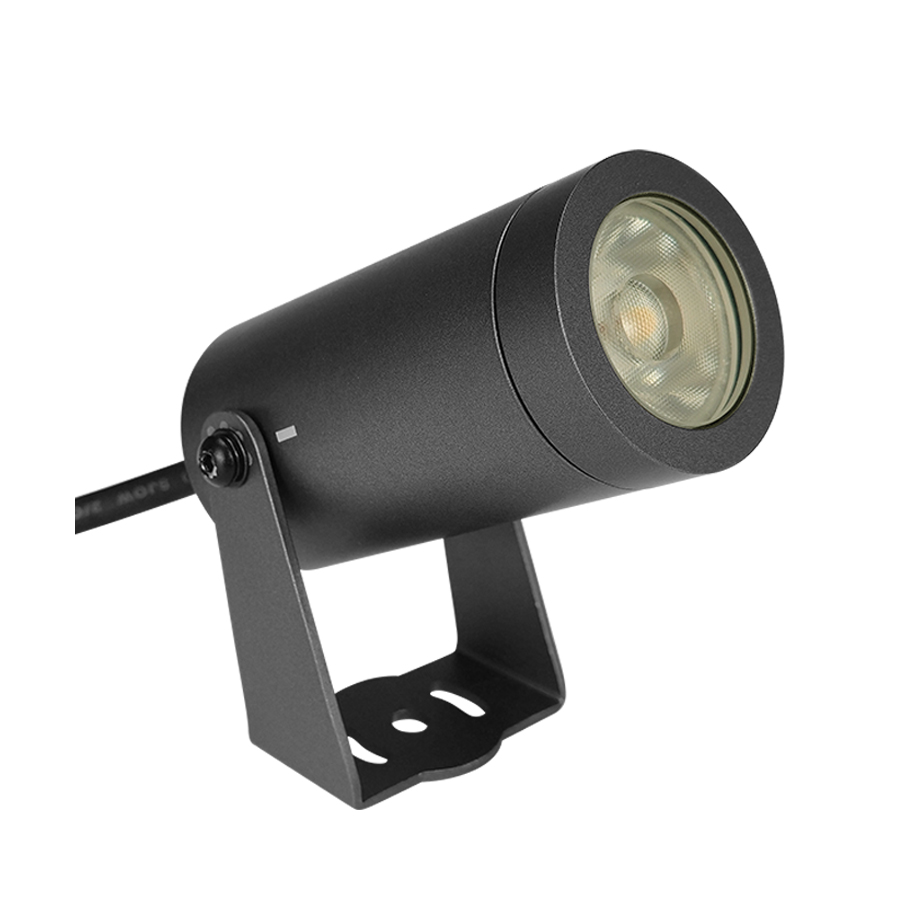

Mars 6
IP67 LED garden spot light
6W,AC12V,Φ46×85 mm (Diameter x Height)
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| General Data | |
| Name | Mars 6 |
| Item No | MA06 |
| Power | 6 watts +-10% |
| LED type | 1 PC 6W CREE COB LED |
| Luminous Flux | 500lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 15°, 24°, 36°, 60° |

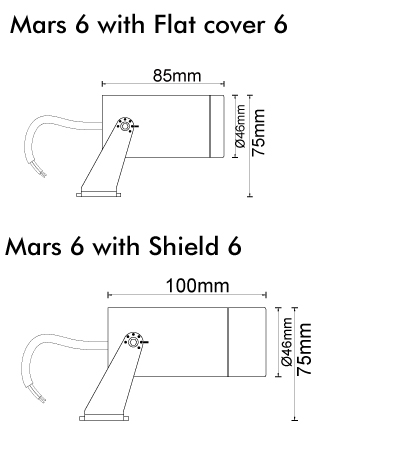

| Dimension | Φ46×85 mm (Diameter x Height) with Flat cover 6 Φ46×100 mm (Diameter x Height) with Shield 6 |
| Cut out | / |
| Net weight | 0.55 kgs |
| Warranty | 3 years as standard, 5 years as options |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 1M 2*0.824 mm2 rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP67 |
| IK rating | IK04 |
| Housing | Aluminium |
| Protection finishing | Electrophoresis+powder coated painted in dark grey as standard, black,coffee red,white ,antiqua brass color as options |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Spike | With spike as spike spot lights (optional) |
| Round base | Aluminium round base for wall mounting (optional) |
| Shield | With anti-glare shield as options |
| Pole | with 300-750mm pole as options |
| Packaging | |
| Inner box size | 180*105*65 mm |
| Carton size | 55*38.5*15.5 cm (20 PCS / carton) |
Gallery
Video
Versions
Mars 3
- 3W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Mars 6
- 6W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Mars 25
- 25W
- DC24V
- 2700K, 3000K, 4000K, 6000K
Mars 15
- 15W
- AC12V
- 2700K, 3000K, 4000K, 6000K
