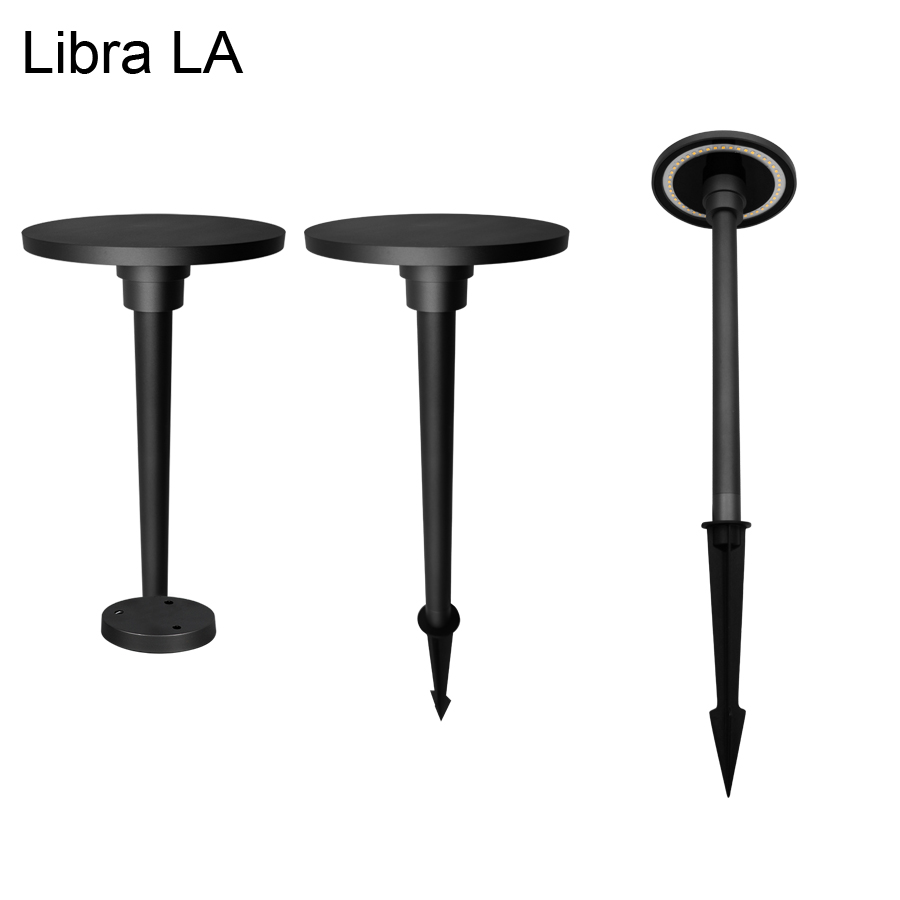

LILA09 (605)

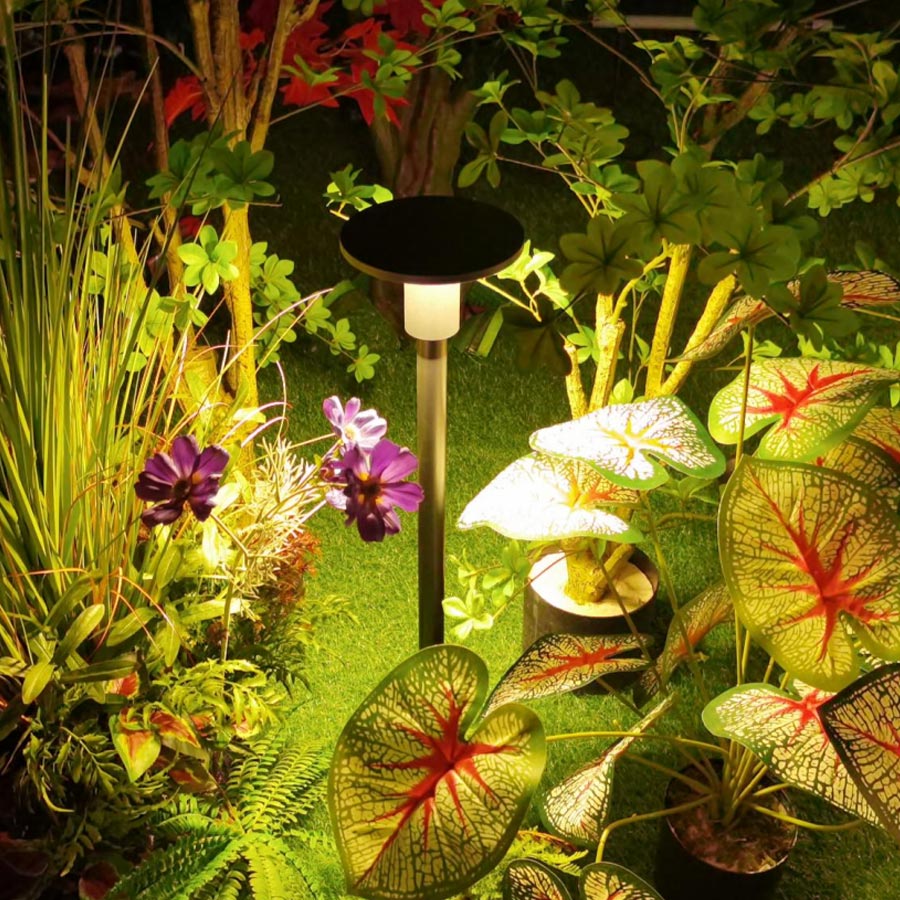

IP65 LED lawn light

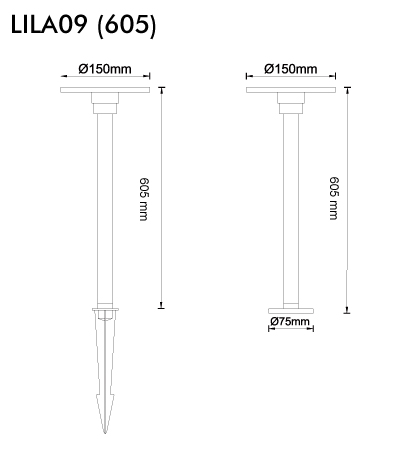

9W,AC12V,Ø150*605mm （Diameter x Height）(Excluding the size of 205mm spike and the 75mm Diameter round base),Pole length 516.5mm
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Libra LA (605) |
| Item No | LILA09 (605) |
| Power | 9 watts +-10% |
| LED type | 48PCS OSRAM 2835 SMD LED |
| Luminous Flux | 700lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 100° |
| Dimension | Ø150*605mm （Diameter x Height） |
| Cut out | / |
| Net weight | 1.2 kgs |
| Warranty | 5 years warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 1.5M 2*0.824mm rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP65 |
| IK rating | IK04 |
| Housing | Aluminium |
| Protectiong finishing | Electrophoresis+powder coated painted in dark grey as standard, black,coffee red,white ,antiqua brass color as options |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Spike | With spike as spike spot lights (optional) |
| Round base | Aluminium round base for wall mounting (optional) |
| Packaging | |
| Inner box size | / mm |
| Carton size | / cm |
