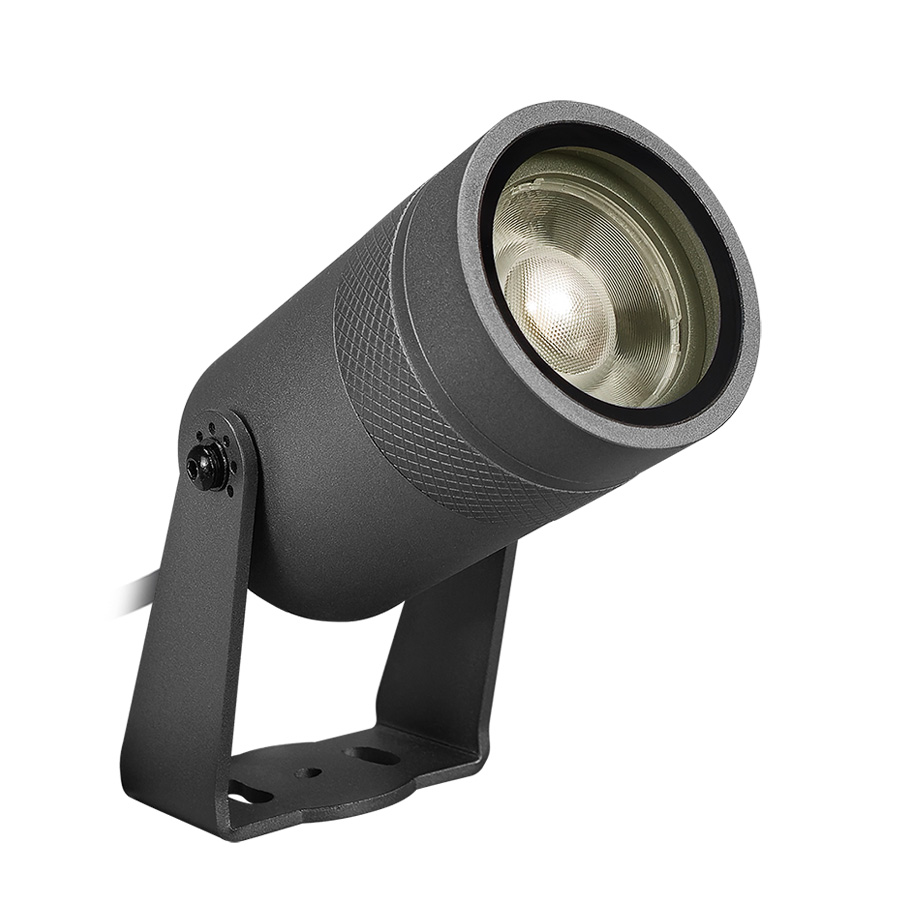

Ceres Zoom 12
IP67 Zoomable LED garden spot light
12W,AC12V,100x103x61 (mm) (Length x Height x Diameter)
$100.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| General Data | |
| Name | Ceres Zoom 12 |
| Item No | CZ12 |
| Power | 12 watts +-10% |
| LED type | 1 PC 12W CREE COB LED |
| Luminous Flux | 900 lm @15° 1000 lm @36° 900 lm @35° 1000 lm @60° |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | Zoom 15° to 36° or 35° to 60° |

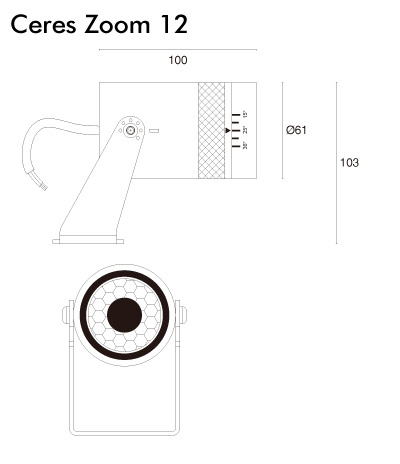

| Dimension | 100x103x61 (mm) (Length x height x Diameter) |
| Cut out | / |
| Net weight | 0.6 kgs |
| Warranty | 3 years as standard, 5 years as options |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | AC12V |
| Insulation class | Class III |
| Cable | 1PC 1M 2*0.824 mm2 rubber cable |
| Driver | constant current driver AC12V input |
| Construction Data | |
| IP rating | IP67 |
| IK rating | IK04 |
| Housing | Aluminium |
| Protection finishing | Electrophoresis+painted in dark grey as standard, black,coffee red,white ,antiqua brass color as options |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Spike | With spike as spike spot lights (optional) |
| Round base | Aluminium round base for wall mounting (optional) |
| Shield | With anti-glare shield as options |
| Pole | with 300-750mm pole as options |
| Packaging | |
| Inner box size | 130*115*80 mm |
| Carton size | 36.5*28*26 cm (18 PCS / carton) |
Gallery
Video
Versions
Ceres Zoom 8
- 8W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Ceres Zoom 4
- 4W
- AC12V
- 2700K, 3000K, 4000K, 6000K
Ceres Zoom 25
- 25W
- DC24V
- 2700K, 3000K, 4000K, 6000K
Ceres Zoom 18
- 18W
- DC24V
- 2700K, 3000K, 4000K, 6000K
Ceres Zoom 12
- 12W
- AC12V
- 2700K, 3000K, 4000K, 6000K
