Carina 48-500
IP68 LED Wall Washer Series
48W,DC24V or DC12V ,500*65*55 mm(Length x Width x Height)
$100.00 – $141.00USD/PC
Specification
-
Power
-
LED colour
-
Finish
-
Beam angle
Technical data
| Name | Carina 48-500 |
| Item No | CA48500 |
| Power | 48 watts +-10% |
| LED type | 9PCS CREE XPG LED |
| Luminous Flux | 1920 lm +-10% |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| SDCM | SDCM<5 |
| Beam angle | 5°,8°,12°,24°,36°,60°, or oval lens 10*30° |

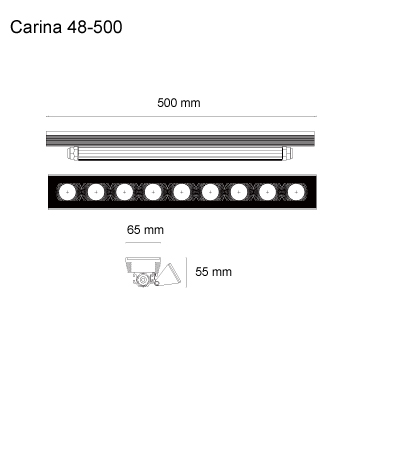

| Dimension | 500*65*55 mm (Length x Width x Height) |
| Cut out | / |
| Net weight | 1.92 kgs |
| Warranty | 5 Years Warranty |
| Certifications | CE,ETL |
| Electrical Data | |
| Input voltage | DC24V or DC12V |
| Insulation class | Class III |
| Cable | Rubber cable 2 PCS 50CM 2*1.5mm2 |
| Driver | constant current driver DC24V or DC12V input |
| Construction Data | |
| IP rating | IP68 |
| IK rating | IK04 |
| Housing | Aluminium |
| Protectiong finishing | Electrophoresis+powder coated painted in dark grey |
| Trim | Aluminium |
| Loading capacity | / KGS |
| Accessories | |
| Connector | 1PC IP68 I tube connector included |
| Packaging | |
| Inner box size | 550*80*80 mm |
| Carton size | 57*18*10 cm (2PCS / carton |
